A batch of stirred yogurt can look smooth after fermentation yet develop a watery layer once strawberry, peach or blueberry preparation is added. The defect may appear around fruit pieces, after transfer to the filling machine, or several days into refrigerated storage.
Start by comparing the plain yogurt base and the fruit-added product from the same batch. Then trace the fruit preparation through dosing, mixing, pumping and filling. Differences in fruit acidity, soluble solids, water movement and mechanical handling can explain why a stable plain yogurt becomes unstable after fruit addition.
Identify the Type of Separation First
The appearance of the defect often points toward the first production step worth checking.
| What appears in the finished cup | Likely investigation area | First evidence to collect |
|---|---|---|
| Clear or pale-yellow liquid above the yogurt | Whey release from the yogurt structure | Plain-yogurt control, pH and viscosity before fruit addition |
| Watery pockets around strawberry or peach pieces | Water migration between fruit and dairy phases, or juice released from broken fruit | Fruit preparation before dosing and pieces recovered from filled cups |
| Pink or purple streaks without free liquid | Movement of fruit pigments and soluble components | Fruit supplier specification and appearance over storage |
| Yogurt becomes thinner between mixing and filling | Mechanical treatment from pumps, valves, mixers or filling equipment | Samples collected before and after each transfer step |
| Fruit content varies from cup to cup | Fruit-to-yogurt flow ratio drifting during line-speed changes | Dosing records and individual cup checks |
| Swelling, gas or unusual odors accompany separation | Possible microbial spoilage | Isolate the lot and follow the plant's food-safety investigation |
Keep a sample of the plain yogurt immediately before fruit dosing and samples of the finished fruit yogurt from the same batch. Store them under the same conditions and compare their appearance, pH and texture. If both samples release whey, investigate the yogurt base and fermentation-to-cooling process. If the plain sample remains stable, focus on the fruit preparation and the equipment downstream of its addition point.
What Happens When Fruit Preparation Meets the Yogurt Gel?
Stirred yogurt contains a fermented casein-based protein network that holds water within its structure. Fermentation establishes the gel; subsequent stirring, cooling, pumping and filling determine much of its finished texture. Fruit adds a second phase containing acids, sugars, water, stabilizers, pigments and sometimes solid pieces.
Local Acidity and Water Migration

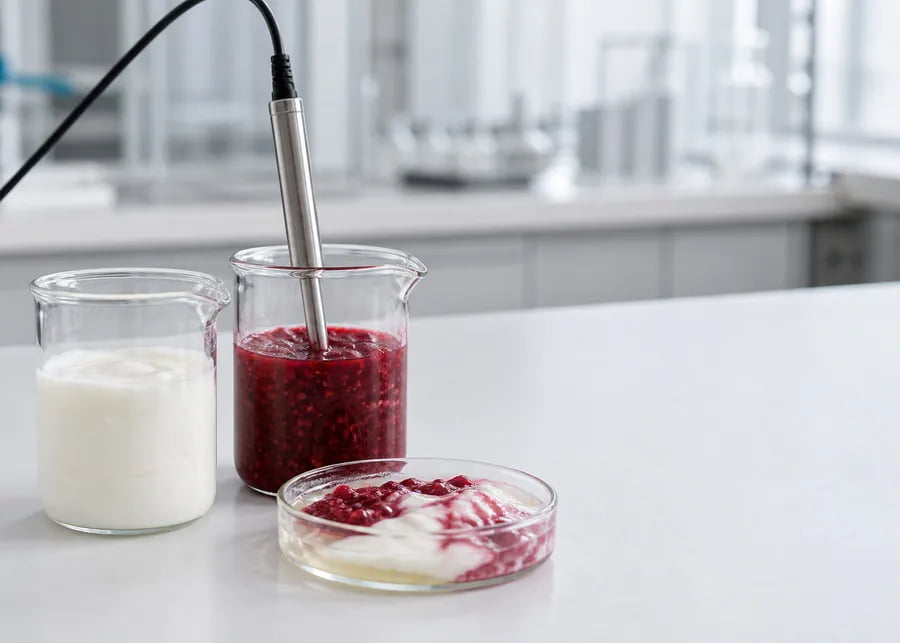

A typical stirred-yogurt process reaches a fermentation endpoint around pH 4.2–4.5. A fruit preparation may have a different pH and buffering capacity. When the two streams meet, acidity and other dissolved components are initially distributed unevenly around the fruit phase. Their movement during mixing and storage can alter the local environment of the protein gel.
A study of a model stirred fruit yogurt containing dairy gel and pectin-based fruit analogues observed water migrating from the dairy gel toward the fruit gel, while hydrogen ions moved in the opposite direction. The concentration gradients also affected the model's structure. This helps explain why a watery halo or texture change can develop around fruit pieces even when the yogurt base initially appears uniform. See the study, Transfers of Small Analytes in a Multiphasic Stirred Fruit Yoghurt Model.
The finished result depends on the specific fruit carrier, its soluble solids and water activity, the yogurt formulation, the addition percentage and the processing conditions. For that reason, fruit pH and °Brix belong on the incoming-ingredient specification and batch record, alongside viscosity, stabilizer composition and fruit particle size.
Stabilizers and Fruit Carrier Composition
Fruit preparations may contain pectin, starch or other hydrocolloids to keep fruit pieces suspended and control viscosity. These ingredients can improve physical stability when the formulation is appropriate. Changing fruit supplier, preparation grade or dosage can change water distribution and the final texture, even when the fruit flavor remains the same.
Compare the actual fruit lots for:
- pH and titratable acidity, where specified;
- °Brix, fruit content and stabilizer system;
- viscosity at the temperature used for dosing;
- maximum particle size, firmness and amount of free juice;
- supplier storage instructions and microbiological specifications.
Fruit that is damaged during pumping creates another variable. Crushed strawberry or peach pieces release juice into the carrier and change the balance between solid particles, syrup and yogurt. Sampling the fruit preparation before the dosing pump and checking pieces recovered from filled cups helps locate that damage.
Batch Blending or In-Line Fruit Dosing?
Commercial stirred yogurt lines commonly add fruit after fermentation and initial cooling. The two main arrangements are batch blending in a vessel and continuous in-line dosing before the filler.
| Arrangement | Process route | What the plant needs to control |
|---|---|---|
| Batch blending | Yogurt and fruit preparation enter a sanitary mixing vessel before transfer to filling | Mixing time, batch uniformity, temperature, working level and further pumping |
| In-line dosing | Yogurt feed and metered fruit preparation meet in a static or dynamic mixer before filling | Flow synchronization, ratio stability, mixer pressure loss and fruit integrity |
Batch Blending
Batch blending can suit shorter production runs or plants that change flavors frequently. The fruit can enter a sanitary mixing tank through a dedicated dosing line. The agitator should distribute the preparation throughout the working volume with limited damage to the yogurt body and fruit pieces.

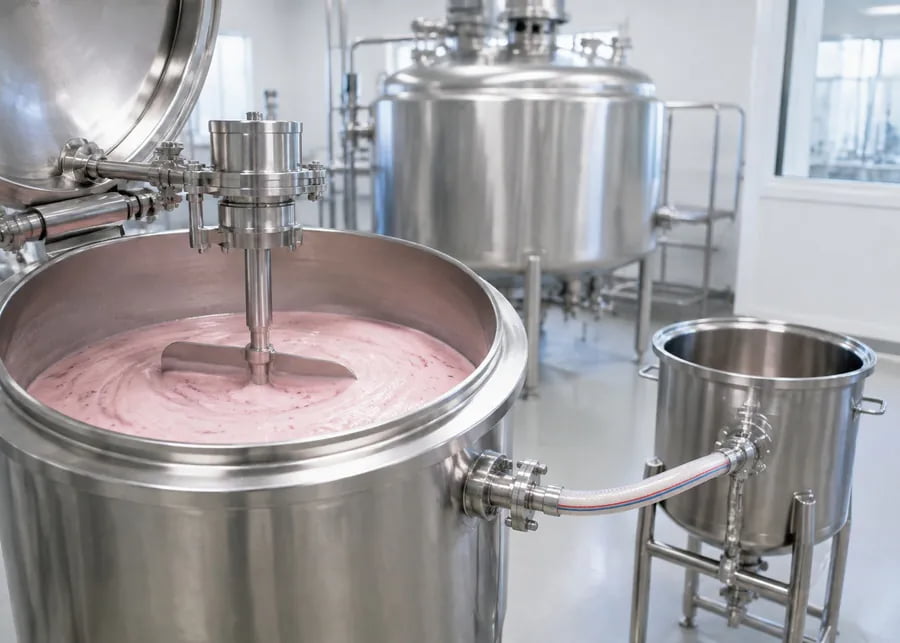

For particularly viscous preparations, a small preblend in a sanitary auxiliary vessel can make feeding and dispersion easier. Select this step according to the fruit's pumping behavior, the batch size and the mixing vessel design.
In-Line Dosing
In a continuous system, the fruit pump follows the yogurt flow into a blending section near the filling line. The Tetra Pak Dairy Processing Handbook describes synchronized fruit and yogurt pumps feeding a static or dynamic mixer.
For example, at 1,500 kg/h of finished yogurt with 12% fruit preparation by finished mass, the required mass flow is:
- Fruit preparation: 180 kg/h
- Plain yogurt base: 1,320 kg/h
The controls need to maintain this proportion at normal running speed, during startup and when the filler slows down. Density and pump performance must be accounted for if the equipment meters by volume instead of mass. A coordinated stop sequence also prevents a short run of under-dosed or over-dosed product at the filler.
Protect Yogurt Texture and Fruit Pieces During Transfer
Pump and mixer selection should begin with the product being handled. A smooth strawberry puree behaves differently from yogurt containing soft strawberry pieces or firm diced peach. Record the largest particle dimension, particle firmness, viscosity at process temperature, required flow and discharge pressure before selecting equipment.
Sanitary rotary-lobe pumps, twin-screw pumps and other suitable positive-displacement designs are options for viscous or particle-containing products. Compare their available passage dimensions, operating speed at the required duty, pressure differential and treatment of soft fruit pieces. The line layout matters as well: restrictive valves, abrupt reductions, long recirculation loops and repeated passes through a mixer add mechanical treatment.
For mixing, a static mixer offers a compact in-line arrangement, while a dynamic mixer provides adjustable mechanical action. Both must distribute fruit at the actual process flow without unacceptable damage to the yogurt structure or particles.
Find Where the Texture Changes
At a steady production rate, take samples from three locations:
- Plain yogurt before fruit addition.
- Fruit yogurt immediately after blending.
- Finished fruit yogurt at the filling outlet.
Compare viscosity using the same test temperature and measurement method. For fruit-containing products, also compare particle size, visible juice release and distribution. Repeat the checks at the lowest, normal and highest planned operating rates. This provides a basis for choosing pump, mixer and valve configurations without relying on a single generic RPM or pipeline-velocity limit.

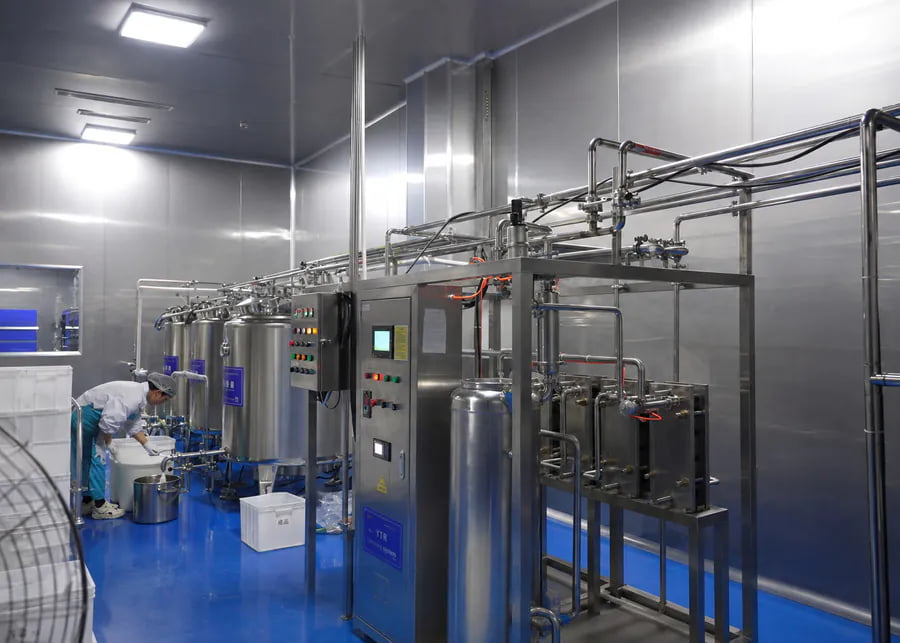

Control Cooling, Fruit Addition and Texture Recovery as One Process
In a common stirred-yogurt process, fermentation ends near pH 4.2–4.5, followed by gentle mechanical treatment and initial cooling to approximately 15–22°C. The yogurt then moves through a buffer tank, receives fruit preparation and is filled before final refrigerated cooling. This sequence is described in the Tetra Pak Dairy Processing Handbook.

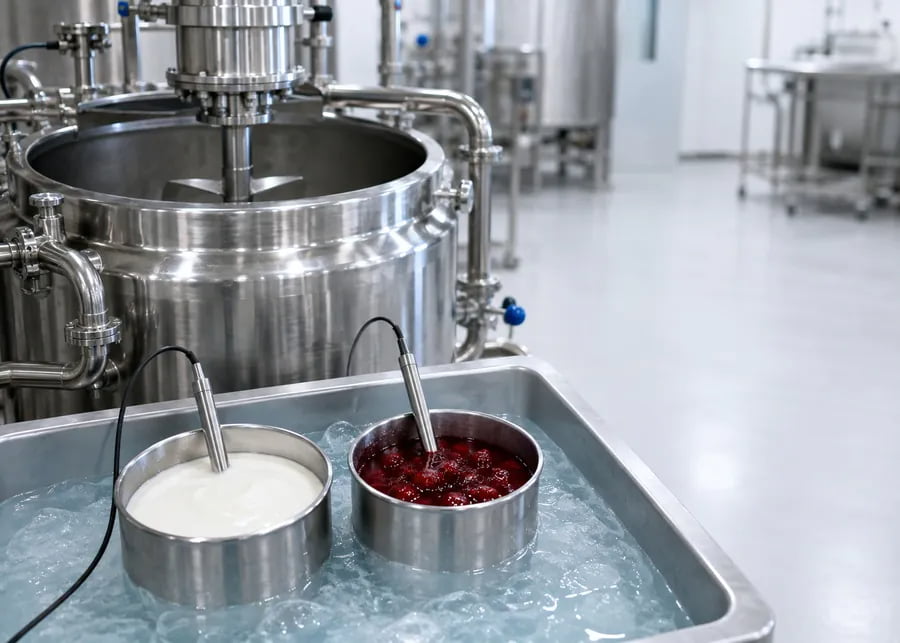

Initial cooling slows further acid development and brings the yogurt into the temperature range used by this process for transfer and blending. The fruit preparation must reach the dosing point at a temperature compatible with its approved handling conditions and required pumpability. Monitor temperature near the fruit injection point as well as in the buffer vessel; the actual process temperature affects viscosity, dosing consistency and the next cooling load.
Why Texture May Improve After Filling
Stirred yogurt is thixotropic: mechanical treatment reduces its apparent structure and viscosity, and some structure can develop again during relatively undisturbed storage. Tetra Pak describes viscosity recovery during the first days of cold storage when processing conditions are well controlled. Research in the International Dairy Journal and Journal of Dairy Science likewise shows that the extent of this recovery is influenced by the original gel, stirring conditions and subsequent storage.
This is important when interpreting measurements. A sample taken directly after the mixer may have a lower apparent viscosity than the same product after refrigerated storage. Measure both immediate post-filling texture and texture during storage. If mixing and pumping have caused extensive breakdown, the product may still finish with weak body or visible whey despite some later recovery.
A useful production record captures fermentation endpoint pH, cooling curve, yogurt temperature at fruit addition, fruit temperature, buffer holding time, filling temperature and refrigerated-storage conditions. Together these show whether the fault began before blending, during fruit handling or after packaging.
Include the Complete Fruit Circuit in Cleaning and Flavor Changeover
Fruit preparation can remain in pump cavities, valve seats, hopper outlets, mixer elements and filling nozzles. A plant switching from strawberry to peach—or from fruit yogurt back to plain yogurt—needs a cleaning route that reaches these contact surfaces.
A fruit-addition and filling system can be configured with CIP-compatible tanks, metering pumps, transfer lines, mixers and filling components. The P&ID should identify separate branches, return paths, drains, sample points and any parts requiring manual access.
During equipment selection, review:
- the fruit hopper outlet and metering-pump seals;
- valves, manifolds, injection points and line branches;
- mixer elements and any removable product-contact parts;
- the filler feed line, dosing chambers and nozzles;
- CIP supply, return, circulation conditions and inspection points.
After product recovery, the changeover procedure should remove fruit residues, clean the relevant circuit and verify rinse and sanitation results using the plant's established program. Conductivity trends can support chemical-rinse verification; visual inspection and the plant's hygiene testing address residues and microbiological control. Fruit color and flavor carryover also deserve attention around seals and valve assemblies.
Troubleshooting: Match the Symptom to the Production Stage
| When the problem appears | First checks | Useful records or samples |
|---|---|---|
| Plain yogurt is already thin | Milk-base formulation, fermentation endpoint, initial cooling and stirring | Plain reference, pH, solids, cooling profile |
| Only one fruit flavor develops watery pockets | Fruit acidity, °Brix, stabilizer system, free juice and dosing rate | Fruit-lot specifications and retained fruit samples |
| Fruit pieces are damaged in the cup | Pump clearances, line restrictions, mixer and filler handling | Fruit before dosing, after pumping and after filling |
| Texture falls sharply during transfer | Pump speed and pressure, valve restrictions, mixing intensity | Samples before and after each equipment section |
| Fruit distribution varies between cups | Flow ratio during start/stop or filler speed changes | Dosing trends, cup weights and fruit-content checks |

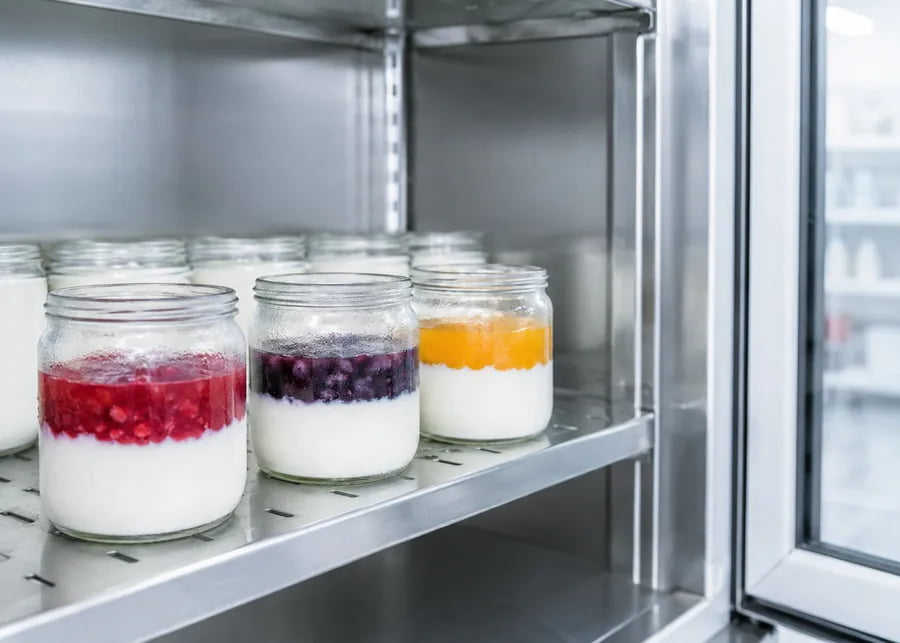

| Separation increases during cold storage | Water migration, yogurt gel strength, post-acidification and cooling history | Matched plain/fruit samples, pH, viscosity and serum observations |
| Packs swell or develop off-odors | Fruit preparation hygiene, sanitation, filling and cold chain | Hold the lot; review microbiology, CIP and packaging records |
A practical trial uses one plain-yogurt batch as the reference, then compares candidate fruit preparations at the proposed dosage. Keep mixing, filling and storage conditions consistent while changing the fruit variable. Track visible serum, pH, viscosity, particle integrity and flavor through the intended shelf life.
If the plain yogurt is already unstable, the upstream process may need attention. Our yogurt syneresis guide covers milk-base and gel-formation factors. Our commercial yogurt shelf-life guide covers retained-sample testing, microbial quality and storage stability.
What to Specify When Buying a Fruit Dosing and Mixing System
A useful equipment quotation starts with a real fruit preparation and the planned production schedule rather than a product name alone.
| Specification | Information required |
|---|---|
| Finished product | Smooth stirred yogurt or yogurt with specified fruit-piece size |
| Production output | Minimum, normal and maximum finished-product rate (kg/h) |
| Fruit preparation | pH, °Brix, viscosity and temperature, density, solids, maximum particle size and firmness |
| Fruit dosage | Target percentage by finished-product mass and acceptable variation |
| Pumps and mixing | Flow, differential pressure, mixer type, smallest product passage and transfer distance |
| Temperature control | Yogurt and fruit temperature at dosing, buffering and final cooling conditions |
| Filling | Filler speed range, product inlet conditions, package format and start/stop behavior |
| Hygiene | CIP coverage, dismantling points, cleaning media, return path and verification points |
| Documents | Equipment dimensions, utility needs, layout, process flow and interface drawings |
Test with the customer's fruit preparation at the required production rates. Compare dosing consistency, fruit integrity and post-filling texture, then evaluate the full flavor-change and cleaning sequence. These observations connect equipment selection to the finished yogurt specification.
How NexAgri Supports Fruit Yogurt Production
NexAgri Solutions can supply batch mixing tanks, fruit metering systems, static or dynamic in-line mixers, sanitary transfer equipment, temperature-controlled buffer tanks, CIP systems and filling-line integration for commercial yogurt production.
For strawberry, peach, blueberry and other fruit-containing products, the equipment arrangement can be developed around fruit size, viscosity, output, dosage and packaging format. Related large-particle, cup-bottom and drinking-yogurt formats can be considered when configuring the processing and filling stages.
Buyers can share their product and fruit specifications, required kg/h output, package type, available utilities and current process layout. These provide the basis for selecting the metering, mixing, cooling and cleaning equipment. See our dairy production lines and dairy processing equipment for related options.
Frequently Asked Questions
Why does strawberry yogurt release whey when plain yogurt from the same batch stays stable?
Strawberry preparation changes the local acidity and dissolved-solids balance around the fermented yogurt gel. Water and acids can migrate between the fruit carrier and the dairy phase during storage. Mixing, pumping and damaged fruit pieces may add further liquid release or weaken the yogurt body. Compare fruit pH, °Brix, formulation and dosing rate; then check viscosity and fruit integrity after blending and at filling. A defect confined to one fruit preparation points first to that ingredient and how it is handled.
Can a stabilizer prevent fruit yogurt separation?
Pectin, starch and other hydrocolloids can improve water retention and fruit distribution when matched to the recipe. Assess them alongside fruit acidity, solids, addition ratio and the mechanical treatment applied to the finished yogurt. Compare pilot batches during the planned refrigerated storage period.
When should fruit be added to stirred yogurt?
A common route adds fruit after fermentation and initial cooling, as the yogurt moves from a buffer tank toward filling. Temperature and residence time are set around the chosen product, fruit preparation and cooling arrangement. A synchronized in-line dosing system is useful for continuous production; batch mixing may suit shorter runs and frequent flavor changes.
Conclusion
When stirred yogurt begins separating only after fruit addition, the best evidence comes from a plain-yogurt control and samples taken along the fruit-dosing and filling path. Fruit composition drives local water and acidity changes; the pumping and mixing system determines how much mechanical treatment the yogurt and fruit pieces receive. Cooling and refrigerated storage then influence the finished texture.
A process designed around measured fruit properties, stable addition ratios, suitable product handling and complete cleaning coverage gives dairy processors a stronger basis for consistent fruit yogurt quality.
