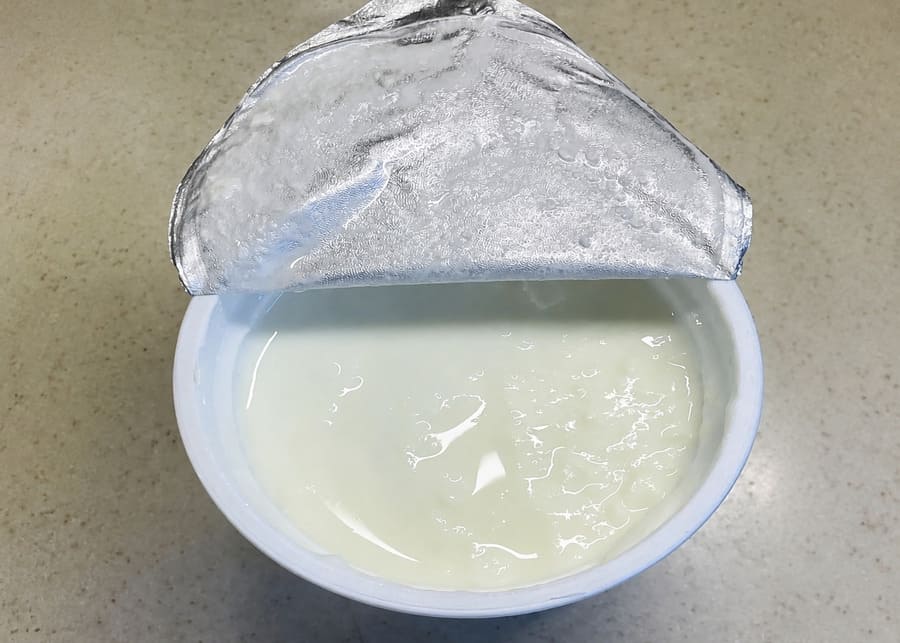

A layer of whey on top of yogurt may appear immediately after fermentation, after stirring, or several days into refrigerated storage. Those three situations can look similar in a cup, but they often point to different parts of the production process.
Yogurt syneresis is the release of liquid whey from the acidified milk-protein gel. It is influenced by milk solids and protein composition, heat treatment, homogenization, starter-culture activity, fermentation conditions, cooling, and the mechanical handling of the finished gel. The first useful troubleshooting question is when the separation begins.
What Causes Whey Separation in Yogurt?

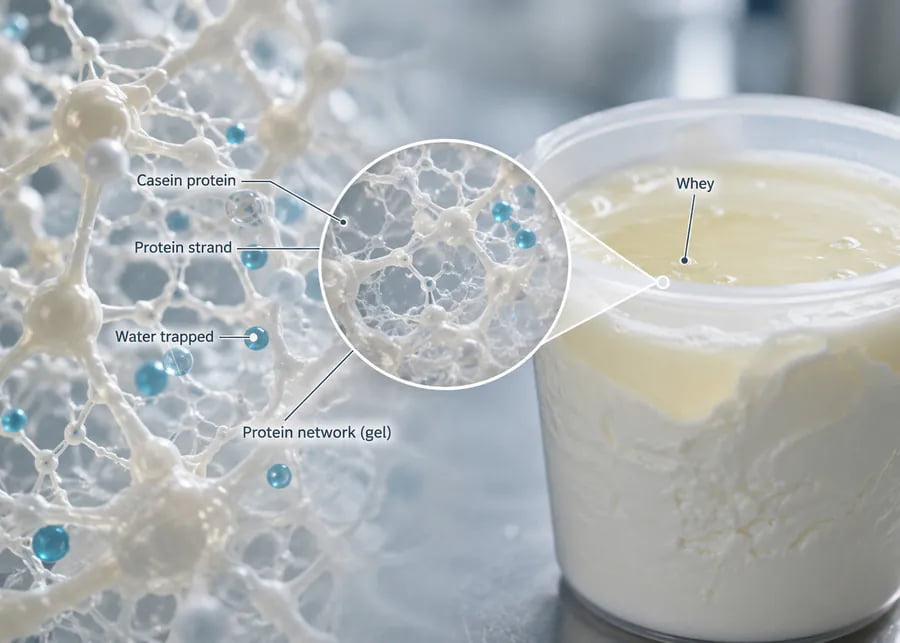

As starter cultures convert lactose into lactic acid, the milk pH falls and casein micelles gradually form a three-dimensional gel. This network holds water, fat and other milk components. Syneresis occurs when serum escapes from that structure, whether through gel rearrangement, weak water-holding capacity or mechanical disturbance.
A well-made yogurt can release a little whey after storage or spooning. Repeatedly large pools of whey, graininess or a noticeable drop in viscosity deserve a closer process review. The review of yogurt syneresis in the Journal of Food Science and Technology identifies milk composition, heating, homogenization, culture selection and cooling as major influences.
Casein approaches its isoelectric region around pH 4.6. As acidification reduces the electrical repulsion between casein particles, they associate into a continuous gel that holds the milk serum. Gel formation can begin at a higher pH, particularly in heat-treated milk where whey proteins have formed complexes with casein. The Center for Dairy Research's yogurt production guide explains the role of acidification and heat-treated proteins in building this structure.
The endpoint matters because the gel is still developing as the pH falls. Breaking a weak gel too early can damage its texture, while continued acidification during slow cooling or refrigerated storage can cause contraction and whey release. Many yogurt products finish near pH 4.2–4.6; the appropriate endpoint and subsequent pH trend need to match the culture and product style.
Does Set Yogurt Separate Differently From Stirred Yogurt?
Yes. The production route determines which parts of the gel are deliberately disturbed.
| Product | Where fermentation occurs | What happens to the gel | Main process concern |
|---|---|---|---|
| Set yogurt | Usually inside the retail cup | The gel is left intact after setting | Weak initial gel, vibration, handling and cooling in the package |
| Stirred yogurt | In a fermentation tank | The gel is intentionally broken and smoothed before filling | Excessive shear during stirring, cooling, pumping or filling |
| Drinking yogurt | Generally starts as a fermented base | The gel is further dispersed to reach a drinkable texture | Stable target viscosity and serum separation during storage |
| Greek or concentrated yogurt | Fermented base followed by concentration, depending on the process | Some whey may be intentionally removed | Distinguishing planned whey removal from unintended separation in the finished cup |
For set yogurt, the filling and packaging sequence happens before incubation; moving the cups too soon after gel formation can disturb the structure. For stirred yogurt, some gel breakdown is essential to achieve a spoonable texture. The goal is a consistent microgel structure with minimal further damage as the yogurt moves to the filler. This distinction is covered in the review of post-processing fermented milk into stirred products.
How Do Milk Solids, Protein and Cultures Affect Stability?
Start with the milk base. A formula with insufficient milk protein or total solids can produce a weak gel even when fermentation temperature is consistent. Fat content, the casein-to-whey-protein balance and seasonal milk changes also influence texture.
For conventional spoonable yogurt, around 3.5–4.5% milk protein and 9.5–12% or more solids-not-fat (SNF) are useful formulation reference ranges. A research-scale stirred-yogurt process, for example, used 4% protein and 14% total solids. SNF includes protein, lactose and minerals; it should not be confused with total solids, which also includes fat. Research on stirred-yogurt heat exchangers and milk standardization illustrates how these starting values are applied in practice.
Processors can adjust the milk-solids level using skim milk powder, milk protein concentrates, whey protein ingredients or concentration processes. The choice affects more than the numbers on a composition sheet: casein-to-whey-protein ratio, powder hydration and heat history all change the finished gel. Higher solids or protein do not automatically give the best texture for every set or stirred yogurt.
Some starter cultures produce exopolysaccharides (EPS) that can improve perceived thickness and water retention. Culture choice, dosage and acidification rate belong to product development and process validation. Stabilizers such as pectin, gelatin or starch may also be used where the product style and market rules permit.
The mixing equipment still matters. Dry powders need proper wetting and hydration before heat treatment. Undispersed powder, inconsistent solids or poorly hydrated stabilizers can leave one batch thick and the next prone to whey-off. We can supply ingredient preparation tanks, powder induction or high-shear premixing equipment, and sanitary transfer systems for these steps. Recipe formulation and culture selection remain with the processor's food technologist.
What Heat Treatment Helps Yogurt Hold Water?
Yogurt milk is commonly heat-treated more intensively than ordinary drinking milk. Heating denatures whey proteins, which can then interact with casein and help form a gel with better water-holding capacity.
Two frequently used yogurt-base heat treatments are 85°C for 30 minutes and 90–95°C for approximately 5 minutes. These conditions promote extensive whey-protein denaturation and interactions between β-lactoglobulin and κ-casein, which can improve gel firmness and water-holding capacity.
Under suitable high-heat yogurt-milk conditions, research has reported roughly 80–90% or greater whey-protein denaturation. The achieved degree depends on the starting milk, temperature, actual holding time and measurement method. The process should be designed around the finished product's texture and verified holding conditions.
For batch production, a jacketed heating vessel can hold the milk at the specified temperature once the entire batch has reached it. Agitation, probe position and temperature records help confirm a uniform hold.
For continuous processing, the heating section and holding tube must deliver the required time at the actual product flow. A simple capacity check illustrates the scale involved:
- At 3,000 L/h, a 5-minute nominal hold corresponds to 250 L of flowing product (3,000 × 5 ÷ 60).
- That is an average volume calculation. The final holding section also needs allowance for the flow profile and residence-time distribution, with the highest permitted flow rate checked to verify the minimum holding time.
- Temperature sensing, flow control, the product's physical properties and hygienic drainage are part of the design.
A standard short-hold drinking-milk pasteurizer should not be assumed to provide a five-minute yogurt treatment without suitable configuration. We can supply batch heating tanks or continuous plate-heating systems with an appropriately designed holding section for the agreed process.
How Much Homogenization Is Needed?
Homogenization breaks large milk fat globules into smaller droplets, helping distribute fat and influence the protein structure of the yogurt. It can improve consistency, although the best pressure depends on milk fat, protein, total solids and the desired product texture.
A frequently used design range for yogurt milk is roughly 15–25 MPa (150–250 bar). Higher pressures within that range are used in some formulations; they are not automatically better for every recipe. The single-stage or two-stage arrangement also affects droplet dispersion and stability. The review of yogurt processing and rheology discusses typical temperatures and pressures.
Our high-pressure homogenizers can be configured for the selected yogurt process, including pressure and single- or two-stage requirements. The final settings should be established through product trials and the equipment's rated operating limits.
How Do Fermentation Temperature, pH and Cooling Affect Syneresis?
Common thermophilic yogurt cultures are often incubated around 40–43°C, with many stirred-yogurt processes ending near pH 4.5–4.6. The exact setpoint depends on the culture, product style, acidity target and what happens during cooling.
A consistent process records more than the final pH:
| Process variable | What to record | Why it helps |
|---|---|---|
| Inoculation | Milk temperature, culture dose and batch identity | Explains changes in acidification speed |
| Incubation | Product temperature and time | Shows temperature swings and unusually long fermentation |
| Endpoint | pH at the decision to cool or move product | Separates the chosen endpoint from later post-acidification |
| Cooling | Product inlet/outlet temperature and cooling time | Reveals slow cooling or inconsistent batch-to-batch conditions |
| Cold storage | Product pH and condition after 24 hours and during shelf life | Helps identify continued acidification and delayed whey-off |
Cooling slows culture activity and limits continued acidification. Some stirred-yogurt processes use an initial cooling stage to roughly 15–20°C, followed by final refrigeration around 4–6°C. This gives the line an opportunity to manage the gel during smoothing and filling. Set yogurt typically cools in its retail container, so the packaging and cooling arrangement are different.
In a continuous stirred-yogurt line, a suitably sized plate or tubular cooler can reduce product temperature toward 18–20°C during a controlled pass before further cooling or filling. The useful design figures are the actual inlet and outlet temperatures, product flow, viscosity, pressure drop and effect on texture. For jacketed batch tanks, cooling time depends more directly on batch volume, heat-transfer area, coolant temperature and agitation. Compare measured product-temperature curves at the planned batch size rather than relying only on a controller setpoint.

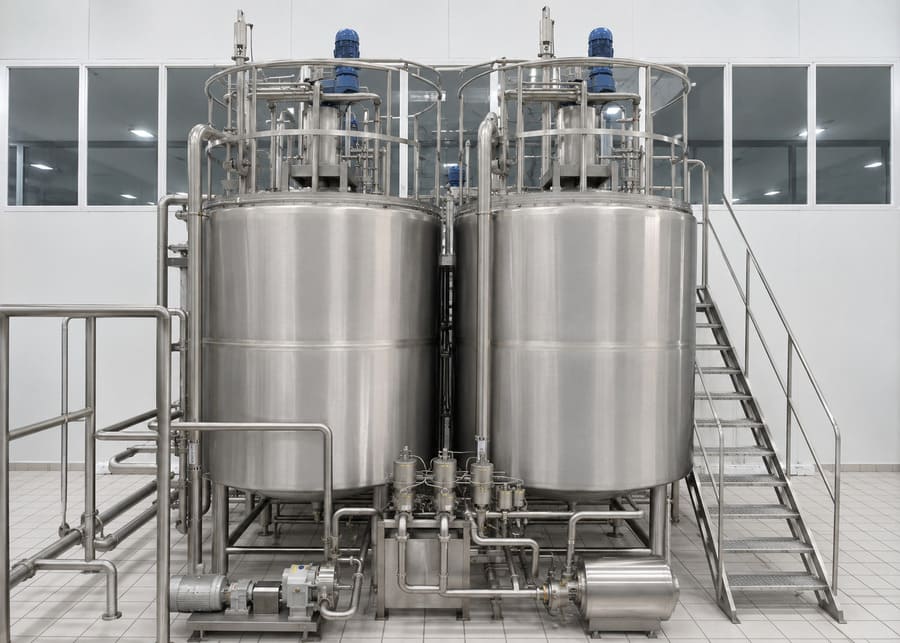

Our yogurt fermentation tanks are available with 30–50°C temperature control and VFD-controlled anchor or paddle agitation. Temperature-control tolerance, including a tighter target such as ±0.5°C, is specified for the agreed configuration and verified under the relevant operating conditions. We can also configure hygienic inline pH measurement, PLC-linked endpoint alarms and automatic or operator-confirmed cooling sequences according to the project's process requirements.
Can Stirring, Pumps and Filling Cause Whey Separation?
They can, especially in stirred yogurt after the gel has formed. Breaking the coagulum is a normal step; repeatedly exposing it to high mechanical stress can reduce viscosity and change the structure that holds serum.
The key stages are:
- Gel breaking and smoothing. The stirrer or smoothing device should achieve the intended texture without repeatedly overworking the product.
- Cooling after fermentation. Jacket cooling or a suitable heat exchanger must remove heat while controlling pressure loss and mechanical disturbance. Plate and tubular systems need to be selected for the actual viscosity and flow properties.
- Transfer to the filler. Pump type, rotational speed, pipe diameter, bends and restrictions influence shear. Sanitary rotary-lobe or twin-screw pumps may suit high-viscosity, shear-sensitive yogurt; selection depends on the product and cleaning requirements.
- Buffering and filling. A correctly sized buffer tank can smooth the flow between batch fermentation and continuous filling. Backpressure and filling conditions should remain consistent.
Fruit yogurt adds another handling step. The fruit or syrup dosing system needs stable metering and an appropriate mixing point, with enough blending to distribute ingredients while protecting the intended texture. Fruit acidity, °Brix, free juice and particle damage can also change whey separation after filling. Our separate guide explains why stirred yogurt can separate after fruit addition and how to trace the problem through dosing, mixing and transfer.
At NexAgri, we can match jacketed tanks, cooling equipment, chilled-water supply, sanitary pumps, smoothing equipment and filling interfaces to the batch size, viscosity, required outlet temperature and filling rate. When an existing yogurt is becoming thin during transfer, the equipment review should include the entire route from fermenter outlet to filling nozzle.
How to Troubleshoot Yogurt Syneresis by When It Appears
Record when whey first becomes visible before changing the machinery or recipe. The timing often narrows the investigation.
| When the problem appears | Likely areas to check | Useful first records |
|---|---|---|
| In the fermenter or set cup at the end of incubation | Protein/solids level, heat treatment, culture activity, incubation profile | Milk composition, heat time/temperature, pH curve |
| Immediately after gel breaking | Stirring intensity, treatment duration, gel firmness at the break point | Agitator speed/time, endpoint pH, viscosity |
| After cooling or pumping | Pump speed and type, pressure drop, cooling profile, repeated recirculation | Inlet/outlet temperatures, flow, pressure, pump settings |
| After filling | Filling shear, temperature, ingredient addition and packaging movement | Fill temperature, nozzle conditions, line speed |
| Several days into cold storage | Post-acidification, formula stability, storage temperature and handling | pH at filling versus storage, temperature log, whey-off result |
| After transport | Handling vibration, package design and product gel strength | Transport temperature, handling observations, before/after samples |
A useful investigation changes one controllable factor at a time while keeping the milk base, culture and storage conditions comparable. Otherwise, a change in whey separation may be wrongly attributed to a new pump or a new temperature setting.
How can a plant measure whey-off consistently?
For an internal quality check, weigh the liquid whey that separates from a standard sample under a fixed test procedure:
Whey-off (%) = mass of separated whey ÷ original yogurt sample mass × 100
If a 200 g test cup releases 6 g of measurable whey, the whey-off result is 3% under that test procedure. Use the same cup size, storage temperature, holding time and handling method for every comparison. Centrifugation-based syneresis tests are also used in research, but their results are method-dependent and should be compared only when the protocol is the same.
Paired measurements of pH, apparent viscosity and whey-off are more informative than a photograph of the finished cup alone. They help establish whether the change happened during acidification, mechanical handling or storage. For broader microbiological and cold-chain questions, see our commercial yogurt shelf-life guide.
What Should an Equipment Supplier Check Before Recommending a Change?
For an existing yogurt line, we start with the process sequence, product samples and operating data to identify where texture begins to change. We would look at:
- Product type: set or stirred yogurt, plus any fruit, protein or stabilizer additions.
- Batch volume or hourly output, milk solids and fat/protein targets.
- Heating temperature, verified holding time and homogenization pressure.
- Culture incubation temperature, pH endpoint and cooling profile.
- Agitator speeds, transfer-pump type, pipe routing and filling rate.
- The stage when viscosity changes or visible whey first appears.
We can help assess equipment-side causes, suggest configuration changes and supply suitable thermal-processing, homogenizing, fermentation, cooling, mixing, transfer and filling equipment. We also provide installation, commissioning, training and technical support for agreed project scopes. The processor's food-technology team remains responsible for recipe development, starter-culture selection and final product specifications.
Frequently Asked Questions
Why does yogurt have water on top after refrigeration?
The liquid is usually whey released from the yogurt gel during storage. A small amount can occur naturally, while repeated large separation may be associated with the formula, fermentation conditions, cooling or post-processing. Changes accompanied by off-odors, gas or unusual appearance also require a food-safety assessment.
Why can yogurt release whey even when its pH is around 4.6?
Casein gel formation develops around this pH region, but gel strength also depends on milk protein, heat treatment and the acidification curve. Compare the pH at gel breaking or cooling with the pH after storage; a drifting endpoint or continued post-acidification can contribute to whey release.
Can a stronger homogenizer fix whey separation?
Homogenization can improve dispersion and contribute to gel structure, but it cannot compensate for every cause of syneresis. Milk solids, heating, cultures, gel handling and cooling should be reviewed together.
Is it better to cool yogurt in one step or two?
Both arrangements are used. Two-stage cooling is common in stirred-yogurt processing, while set yogurt is generally cooled after setting in the cup. The cooling profile needs to fit the product's structure and downstream handling.
Do stabilizers always prevent whey separation?
Stabilizers can improve water retention in suitable formulations, but ingredient type, hydration, permitted use and process conditions determine the result. They do not replace consistent heating, fermentation and handling.
Conclusion
Yogurt syneresis can begin with the milk base, develop during fermentation or be made worse by cooling, pumping and filling. The fastest route to a useful correction is to identify when whey separation starts, then compare the corresponding process data with a stable batch.
At NexAgri Solutions, we supply equipment for yogurt and dairy production lines, including heat treatment, homogenization, fermentation, ingredient mixing, cooling and hygienic transfer. If you are planning a new yogurt line or investigating a process bottleneck, contact our team with your product type, batch capacity and process requirements so we can review a suitable equipment arrangement.
