A yogurt line that runs smoothly in cooler weather can struggle once the outdoor temperature rises. The fermentation recipe may be unchanged, yet the product takes longer to cool, the filling room develops condensation, and packed cups enter the cold store warmer than expected.
For small-scale yogurt production in summer, the first equipment checks are cooling-water temperature, fermentation endpoint control, product cooling time and the refrigeration load created by filling and cold storage. A continuous milk-preparation line can run at its rated flow while a downstream fermentation tank, yogurt cooler or cooling room becomes the bottleneck.
The solution depends on whether the plant makes set yogurt, fermented in the package, or stirred yogurt, fermented in a tank and cooled before filling. The two products need different cooling arrangements, even when they share milk preparation, heat treatment and CIP equipment.
Why Does Summer Change the Performance of a Yogurt Line?
Higher ambient temperatures affect more than room comfort. They change the temperature of incoming cooling water, raise the heat load on refrigeration equipment and make it harder to remove heat from packaged products. Warm, humid air also increases the risk of condensation around cold pipes, filler surfaces and entry points to chilled rooms.
The production team should distinguish four symptoms before changing the yogurt formulation:
| Observed problem | What to measure first | Equipment area to investigate |
|---|---|---|
| Tank reaches target pH but cooling takes longer | Product temperature curve; jacket supply/return temperatures | Chiller, cooling-water circuit, jacket or heat exchanger |
| Stirred yogurt loses viscosity after transfer | Pump speed, pressure drop, transfer time and product temperature | Low-shear pump, cooler and filling line |
| Condensation appears near the filler | Room air temperature, humidity, surface temperature and airflow | Food-processing HVAC and dehumidification |
| Cold room display is normal but cups remain warm | Product core temperature and pallet/box layout | Air cooler, airflow distribution and incoming product load |
A plant can have several of these problems at once. Separating them by measurement is usually faster than increasing cooling capacity across the entire factory.
Where Does Continuous Milk Preparation Fit Into the Summer Cooling Load?
For plants with a 500–3,000 L/h continuous milk-preparation section, heating, holding and pre-cooling can run steadily while fermentation and filling operate in batches. The important figure is how much product enters the next stage during the busiest period, not just the pasteurizer's nominal hourly capacity.
A typical stirred-yogurt route is:
Raw milk reception → standardization and ingredient mixing → homogenization and yogurt-milk heat treatment → cooling to inoculation temperature → fermentation tanks → controlled curd breaking → yogurt cooling → filling → refrigerated storage.
The heat-treatment conditions are chosen for the product, often more intensive than those used for ordinary drinking milk. A commonly used yogurt-milk treatment is 90–95°C for approximately 5 minutes, followed by cooling to the selected culture-inoculation temperature. For continuous treatment, the holding-tube dimensions and controlled flow rate are selected together to deliver the required residence time at the processing temperature.
The fermented milk processing chapter in the Tetra Pak Dairy Processing Handbook illustrates the production and cooling arrangements for set and stirred yogurt.
Batch vessels remain useful for smaller recipes or trial production. On larger small-plant lines, however, the continuous front end and the batch fermentation schedule must be designed together. Otherwise, a well-sized pasteurizer can spend hours waiting for a fermentation tank to empty.
How Should Fermentation Endpoint and Cooling Controls Work?
A typical stirred yogurt culture may ferment around 42–43°C, with the endpoint commonly near pH 4.2–4.5. These are useful process references; the selected culture and product specification determine the actual target. The operator should follow pH development and product temperature together, especially when batch timing changes.
At NexAgri, we can configure jacketed fermentation tanks with online pH measurement, variable-speed agitation and PLC control. For a specified product, the control sequence can include:
- Holding the batch at its assigned fermentation temperature.
- Recording pH and product temperature during incubation.
- Changing to cooling mode when the defined endpoint or approved control condition is reached.
- Checking cooling-water supply and return temperatures; generating an alarm if cooling is delayed.
- Recording the cooling curve and moving to the next stage once the required product temperature is reached.
Different yogurt recipes can be stored as separate control programs, with temperature, pH endpoint, agitation and alarm settings. Data recording and export can be included in the selected PLC/HMI arrangement.
Prompt cooling reduces starter-culture activity and slows further acid development. A delay after the target pH is reached can lead to a sharper flavor and changes in texture during storage.
Why Must Set Yogurt and Stirred Yogurt Be Cooled Differently?
This is one of the most important equipment distinctions for a small yogurt factory.
| Processing step | Set yogurt | Stirred yogurt |
|---|---|---|
| Where fermentation occurs | Inside cups or other final packages | Inside fermentation tanks |
| Main cooling system | Cooling room or tunnel with designed airflow | Jacket pre-cooling and/or a suitable product heat exchanger |
| Product handling concern | Avoid disturbing the forming gel; maintain airflow around packages | Limit curd damage from pumping, pressure and excessive shear |
| Summer capacity check | Packages, crates, trolley spacing and product-core cooling time | Tank-emptying time, pump flow, cooler duty and filling rate |
| Refrigerated storage | Complete final cooling and hold packaged product | Hold filled product after controlled cooling and filling |
Set yogurt: check the temperature at the center of the cup
After filling and incubation, set yogurt is cooled in the package. Cooling-room air can reach its setpoint while densely packed cups stay warm. Cup size, crate openings, trolley spacing and air circulation determine how quickly the product center cools.
A common industrial sequence brings the product down through an initial cooling stage to roughly 18–20°C, then completes cooling in the cold store toward approximately 5°C. The relevant measurement is the product-temperature curve across representative packages, including those in the least favorable positions.
Stirred yogurt: match cooling duty to tank discharge and filling
Stirred yogurt is cooled after fermentation, normally with carefully controlled mechanical treatment. Industrial references describe cooling to approximately 15–22°C in a product cooler, often with the pump and exchanger sized to discharge a fermentation tank over a planned interval, followed by final chilling and filling according to the selected process.
We can configure jacketed tanks, suitable plate or tubular cooling sections, low-shear sanitary pumps and buffer vessels around the actual product viscosity and filling speed. The final cooler needs to be assessed for both heat transfer and the texture changes caused by product movement.
Further detail on whey separation and equipment effects is available in our yogurt syneresis engineering guide.
How Much Cooling Capacity Does a 1,000 kg Yogurt Batch Need?
Consider a 1,000 kg stirred-yogurt batch that must be cooled from 43°C to 20°C. Using an approximate specific heat capacity of 3.9 kJ/(kg·K), the sensible heat that must be removed from the product is:
Product heat removed = 1,000 × 3.9 × (43 − 20) = 89,700 kJ.
That is approximately 24.9 kWh of product heat. If the planned cooling period is 30 minutes, the average product-side cooling duty is:
Average product-side duty = 89,700 ÷ (30 × 60) ≈ 49.8 kW.
This calculation gives the product's cooling load for that stage. Actual equipment selection also accounts for the tank or piping, heat gained from the room, water temperature, exchanger approach temperature, operating losses and other simultaneous users of the refrigeration system.
| Planning input | Example value | Why it matters |
|---|---|---|
| Batch mass | 1,000 kg | Determines total product heat |
| Product temperature | 43°C → 20°C | Determines the temperature drop |
| Assumed specific heat | 3.9 kJ/(kg·K) | Used for the preliminary heat balance |
| Desired cooling time | 30 min | Determines the average duty |
| Calculated product load | 49.8 kW | Starting point for cooler and utility calculations |
If two fermentation tanks are cooled at the same time, their loads may overlap. If a continuous milk-preparation line is also using ice water, the refrigeration system must handle the combined demand during the busiest operating period.
Why Does a Tank Cool More Slowly in Summer?
A 1,000 L fermentation tank may have enough heat-transfer area in winter but take noticeably longer to cool in summer. A warmer chilled-water supply reduces the temperature difference driving heat transfer. Reduced water flow or fouled heat-transfer surfaces can produce a similar symptom.
Before proposing a larger chiller, measure the following during a complete batch:
- Yogurt temperature at the start and throughout cooling.
- Cooling-water supply and return temperatures.
- Cooling-water flow and pump operating condition.
- Control-valve opening and relevant line pressures.
- Ambient conditions and any simultaneous cooling loads.
The equipment assessment then checks the available heat-transfer area, actual temperature difference, chiller capacity at the local summer design condition, storage-buffer capacity and the pump's duty point.
A useful first response is to check sensor accuracy, water flow and exchanger cleanliness. If the system still lacks capacity at the summer design condition, options include increasing heat-transfer area, changing the cooling-water circuit, adding buffer storage or resizing refrigeration equipment.
NexAgri can use the measured temperature curves to size cooling equipment, revise the circulation layout and check actual cooling performance during commissioning.
How Do Summer Humidity and Filling Conditions Affect Product Hygiene?
A warm, humid workshop creates condensation risks when moist air contacts cold product piping, filler structures and cooled packages. These droplets can carry contamination if they form above exposed product or difficult-to-clean surfaces. Cooling the room without controlling moisture and air movement may leave the problem unresolved.
For a small yogurt filling area, the HVAC assessment should include room size, door openings, outdoor humidity, staff, packaging equipment heat, filtered air supply and the location of cold surfaces. Airflow and pressure relationships are selected according to the factory's hygiene zoning and product exposure risk.
NexAgri can configure food-processing HVAC, filtered fresh air, dehumidification and temperature/humidity monitoring to suit the filling room's heat and moisture loads, door traffic and hygienic airflow requirements.

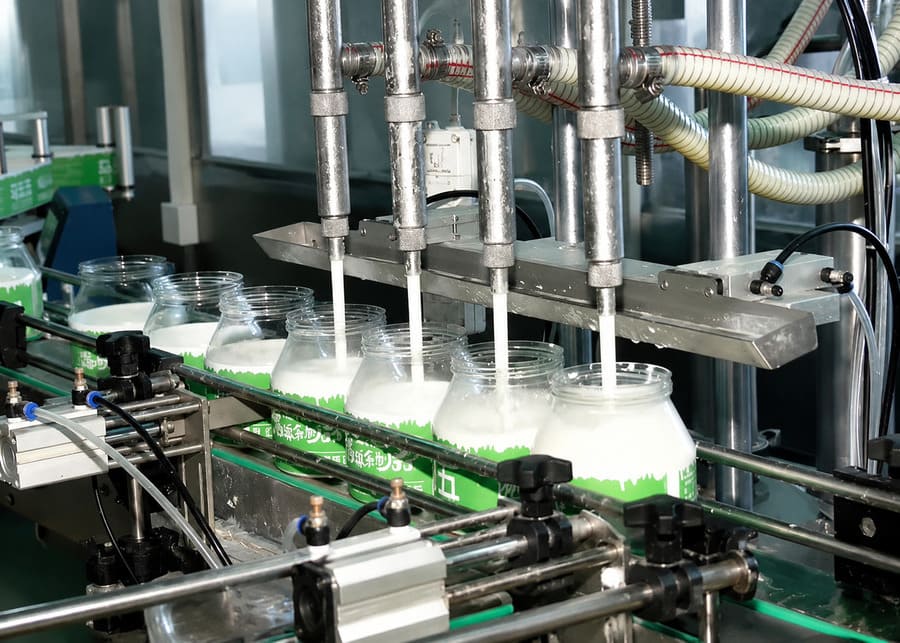

Filling conditions also affect texture. Warm product held for too long before filling can continue to acidify, while excessive transfer shear may reduce viscosity. If fruit is added, mixing and filling conditions introduce another variable; see our separate guide to stirred yogurt separation after fruit addition.
What Should a Summer CIP and Changeover Review Cover?
Warm weather increases the importance of keeping equipment clean, drained and ready for the next production run. The relevant questions are whether the established CIP program reaches every product-contact area, whether valves switch correctly and whether residues remain in low points or temporary connections.
| Review item | What the team should check |
|---|---|
| Tanks, pipework and filler connections | Drainability, valve seats, sample ports and difficult-to-clean sections |
| Cleaning sequence | Correct product/CIP routing, stages and operator permissions |
| Production/CIP interlock | Product transfer cannot restart until the required cleaning sequence and release checks are complete |
| Cleaning records | Evidence that the site's validated cleaning program was followed |
| Verification | Customer or independent laboratory testing where microbiological evidence is required |

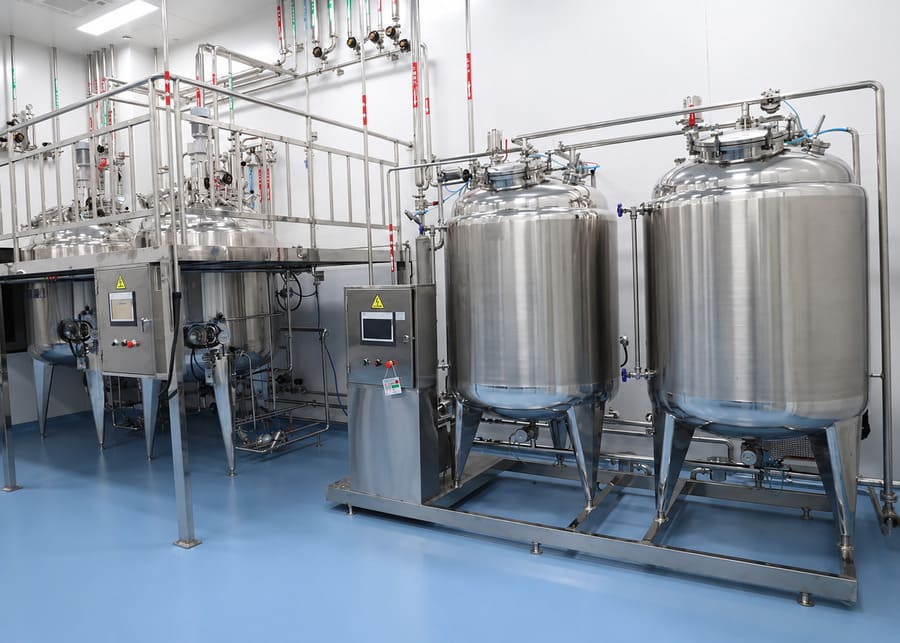

NexAgri can supply CIP equipment and configure automatic valves and production/cleaning mode interlocks. The plant can verify the cleaning program through its quality checks and, where needed, testing by a qualified laboratory. CIP validation considers flow, time, temperature and detergent concentration, as covered in the Tetra Pak dairy-equipment cleaning guide.
Why Can Yogurt Stay Warm in a Cold Room That Reads 4°C?
The temperature shown on a cold-room controller describes the air at its sensing point. It does not show how quickly a cup in the middle of a tightly packed carton or pallet is cooling. Large incoming batches, frequent door openings and poor air circulation can all slow the decrease in product-core temperature.
For set yogurt, the package and crate arrangement are part of the cooling process. For filled stirred yogurt, the incoming product temperature and daily packing schedule also matter. Cold-room design should be checked against the peak incoming load, not only the number of pallets stored at the end of the day.
NexAgri can supply refrigeration units and air coolers and help size their duty using product quantity, initial and target temperatures, cooling period and summer operating conditions. Product-temperature logging, warehouse practices and refrigerated distribution should be specified in the customer's cold-chain and quality plan.
A typical chilled yogurt process aims to bring product to approximately 4–6°C for refrigerated holding, with the plant's approved product specification and local requirements determining the release conditions. The timing and temperature at the product center are more informative than the room display alone.
What Information Is Needed to Configure Summer Yogurt Cooling Equipment?
For a new line or an upgrade, a practical equipment inquiry should provide:
| Information | Details to provide |
|---|---|
| Product | Set yogurt, stirred yogurt or both; packaging type and size |
| Capacity | L/h of milk preparation, kg per fermentation batch, daily number of batches |
| Fermentation | Culture operating temperature, pH endpoint and tank discharge schedule |
| Cooling | Starting and target product temperatures; allowed time per cooling stage |
| Utilities | Summer chilled-water supply temperature, return temperature, flow and available refrigeration capacity |
| Filling/storage | Filling rate, room conditions, daily packed volume and cold-room loading pattern |
| Controls | pH/temperature recording, automatic cooling transition and alarm requirements |

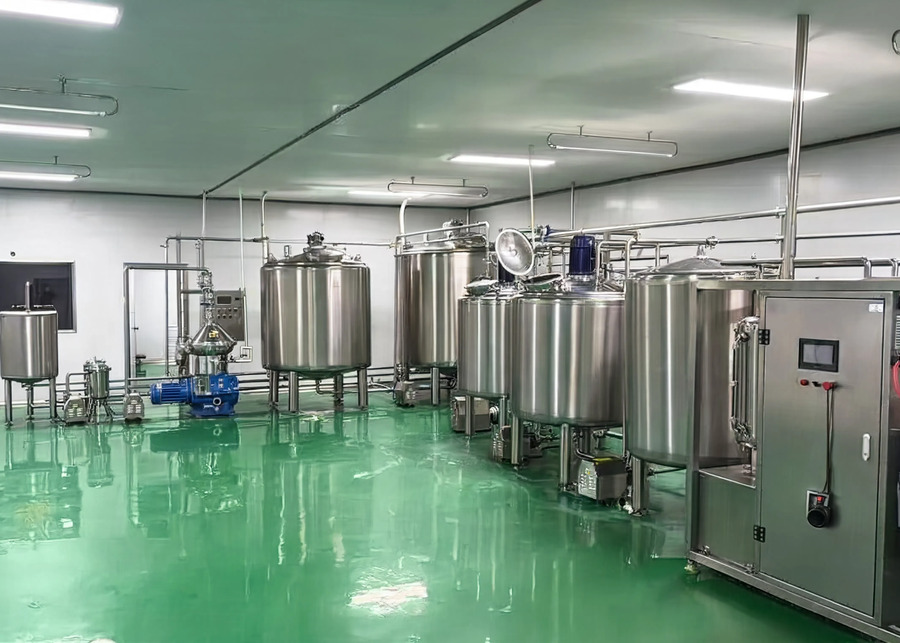

Our dairy production lines can combine continuous milk preparation with batch fermentation, while our processing equipment covers fermentation tanks and CIP integration. We can prepare equipment selections, cooling-duty calculations, process and control layouts, and installation/commissioning support for the agreed project scope.
Frequently Asked Questions
Does a warmer room automatically make a closed fermentation tank ferment faster?
A temperature-controlled, insulated tank should follow its product setpoint. Check actual product temperature, temperature distribution and control performance before attributing changes in acidification to the weather. Summer becomes more influential when refrigeration or heating control cannot maintain the intended conditions.
What is a typical pH endpoint for stirred yogurt?
A common industrial range is around pH 4.2–4.5. The actual endpoint is set for the culture and the finished product. Cooling begins according to the approved recipe, and the product's acidity continues to develop more slowly as temperature falls.
Can a milk cooling tank be used to chill finished stirred yogurt?
Finished stirred yogurt is viscous and sensitive to shear. Cooling equipment must be selected for the yogurt's rheology, hygienic requirements and desired texture. A suitable jacketed fermenter or yogurt-designed product exchanger and low-shear pump may be appropriate; an ordinary raw-milk cooling tank is not automatically the right choice.
Why does a yogurt cooler need more capacity in summer?
The incoming cooling water may be warmer, refrigeration capacity may fall at high ambient temperature and other factory loads may overlap. The actual effect is found by comparing cooling curves, utility temperatures and flow under summer and cooler-weather conditions.
What is the difference between cooling set yogurt and stirred yogurt?
Set yogurt is fermented in the package and then cooled with controlled air movement. Stirred yogurt is fermented in a tank, mechanically treated and cooled before filling. Their refrigeration, product-handling and capacity calculations are therefore different.
Conclusion
For a small yogurt plant, the summer equipment plan should follow the actual production schedule: how quickly fermentation batches finish, how much heat must be removed before filling, and how fast packaged yogurt can cool in storage. Set and stirred products place different demands on the cooling system, so their peak loads and handling requirements should be assessed separately.
NexAgri Solutions can configure fermentation tanks, process coolers, low-shear pumps, PLC-based controls, hygienic filling equipment, CIP systems and refrigeration components for small yogurt plants. If you are planning a summer-capacity upgrade, contact our team with your production schedule and temperature data to discuss the equipment arrangement and cooling duty.
